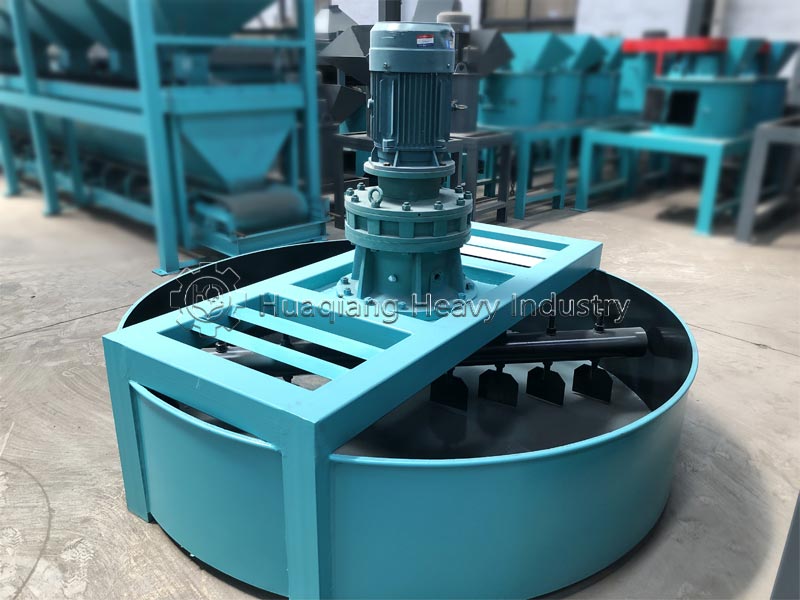

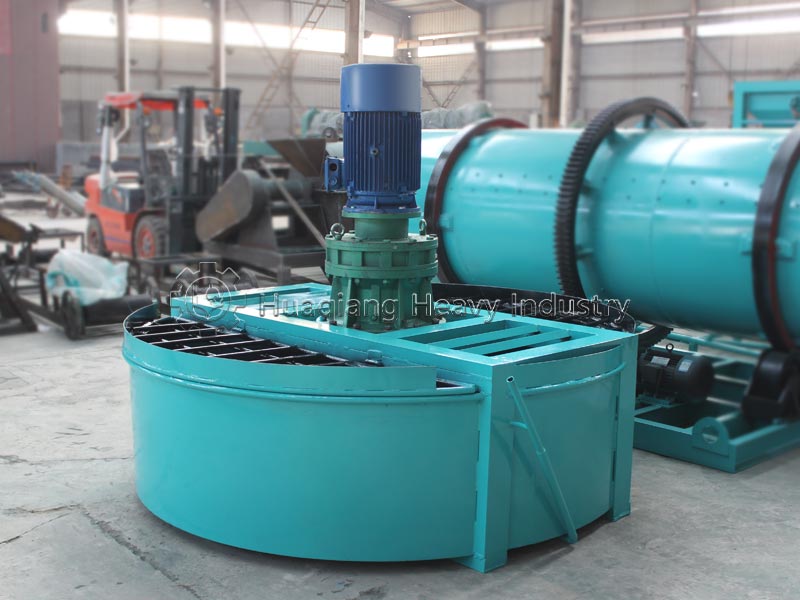

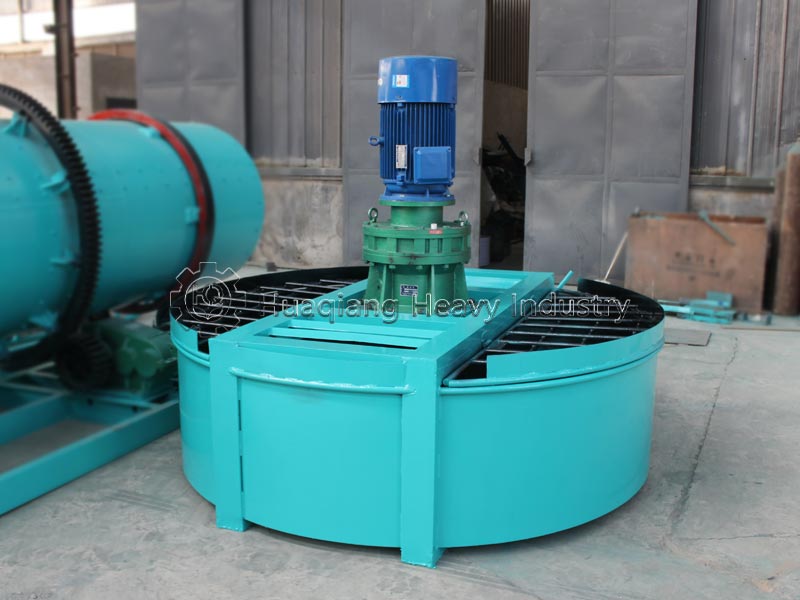

Vertical Mixer

The machine is a new type of vertical mixer. It is composed of a stirring plate, a feed outlet, a stirring arm, a rack, a gear box and a transmission mechanism. The machine is characterized by the driving shaft of the reducer, which makes it run, the stirring shaft has a fixed stirring tooth, and the stirring shaft drives the stirring tooth to mix the material fully. The mixer has the advantages of long life, energy saving, small volume, fast mixing speed, and continuous work.

The machine is mainly used for the mixing of raw materials. Therefore, it is not easy to stick to the material and wear resistance. The cycloid pinwheel reducer make the machine has the characteristics of compact structure, convenient operation, uniform mixing, and convenient discharge and transportation.

This machine can divided into three parts:

1. Frame part: All the machine working bodies are installed and fixed on the frame. The frame of the machine is welded by high carbon steel plate and channel steel, and it has reached the purpose of the machine through strict product certification and specific process requirements.

2. Transmission connection part: The machine adopts the cyclonic gear reducer to drive the spindle rotation, and the main working part of the machine adopts nylon column pin is the transmission connector tooth and transmission drive, convenient for assembly and maintenance.

3. Mixing part: The transmission wheel passes through the pin coupling to the main shaft. The material is uniformly reversed in the mixing chamber, so that the material can be fully mixed, thereby greatly reducing the residual amount of the material.
